ADJUSTABLE LEVELLING ARM
|
CODE
|
L (MIN)
|
L (MAX)
|
L1
|
D
|
d
|
H1
|
h1
|
d1
|
h2
|
|
MGEALA1930
|
380
|
530
|
230
|
M24X3
|
18
|
24
|
72
|
19.0
|
44
|
|
MGEALA1931
|
380
|
530
|
230
|
M24X3
|
18
|
24
|
72
|
22.1
|
35
|
|
MGEALA1940
|
410
|
560
|
260
|
M24X3
|
18
|
24
|
72
|
19.0
|
44
|
|
MGEALA1941
|
410
|
560
|
260
|
M24X3
|
18
|
24
|
72
|
22.1
|
35
|
|
MGEALA1943
|
490
|
657
|
340
|
M24X3
|
16
|
24
|
72
|
22.1
|
35
|
|
MGEALA1945
|
520
|
690
|
380
|
M24X3
|
16
|
24
|
72
|
22.1
|
35
|

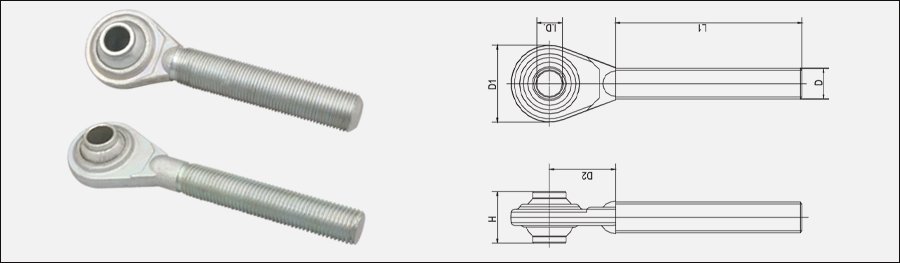

Top Link End
|
CODE
|
CAT.
|
I.D.
Φ |
THREAD
D |
L1
|
D1
|
D2
|
H
|
|
MGETE20R250
|
0
|
16
|
M20X2.5 R
|
85
|
48
|
40
|
25.4
|
|
MGETE20L250
|
0
|
16
|
M20X2.5L
|
85
|
48
|
40
|
25.4
|
|
MGETE22R25S1
|
1
|
19
|
M22X25R
|
95
|
58
|
50
|
44
|
|
MGETE22L25 S1
|
1
|
19
|
M22X25L
|
95
|
58
|
50
|
44
|
|
MGETE22R25B1
|
1
|
19
|
M22X25R
|
105
|
58
|
50
|
44
|
|
MGETE22L25 B1
|
1
|
19
|
M22X25L
|
105
|
58
|
50
|
44
|
|
MGETE24R251
|
1
|
19
|
M24X25R
|
115
|
58
|
50
|
44
|
|
MGETE24L251
|
1
|
19
|
M24X25L
|
115
|
58
|
50
|
44
|
|
MGETE24R30S1
|
1
|
19
|
M24X3R
|
115
|
58
|
50
|
44
|
|
MGETE24L30S1
|
1
|
19
|
M24X3L
|
115
|
58
|
50
|
44
|
|
MGETE24R30B1
|
1
|
19
|
M24X3R
|
155
|
62
|
50
|
44
|
|
MGETE24L30B1
|
1
|
19
|
M24X3L
|
155
|
62
|
50
|
44
|
|
MGETE24R302
|
2
|
25.4
|
\M24X3R
|
165
|
75
|
55
|
51
|
|
MGETE24L302
|
2
|
25.4
|
M24X3L
|
165
|
75
|
55
|
51
|
|
MGETE27R301
|
1
|
19
|
M27X3R
|
150
|
58
|
50
|
44
|
|
MGETE27L301
|
1
|
19
|
M27X3L
|
150
|
58
|
50
|
44
|
|
MGETE27R302
|
2
|
25.4
|
M27X3R
|
165
|
66
|
55
|
51
|
|
MGETE27L302
|
2
|
25.4
|
M27X3.E
|
165
|
66)
|
55
|
51
|
|
MGETE27R302H
|
2
|
25.4
|
M27X3R
|
165
|
75
|
55
|
51
|
|
MGETE27L302H
|
2
|
25.4
|
M27X3L
|
165
|
75
|
55
|
51
|
|
MGETE30R301
|
1
|
19
|
M30X3R
|
155
|
58
|
50
|
44
|
|
MGETE30L301
|
1
|
19
|
M30X3L
|
155
|
58
|
50
|
44
|
|
MGETE30R351
|
1
|
19
|
M30X35R
|
155
|
58
|
50
|
44
|
|
MGETE30L351
|
1
|
19
|
M80X35L
|
155
|
58
|
50
|
44
|
|
MGETE30R302
|
2
|
25.4
|
M30X3R
|
165
|
75
|
55
|
51
|
|
MGETE30L302
|
2
|
25.4
|
M80X3L
|
165
|
75
|
55
|
51
|
|
MGETE30R352
|
2
|
25.4
|
M80X35R
|
165
|
75
|
55
|
451
|
|
MGETE30L352
|
2
|
25.4
|
M30X35L
|
165
|
75
|
55
|
51
|
|
MGETE36R30S2
|
2
|
25.4
|
M36X3R
|
165
|
80
|
55
|
51
|
|
MGETE36L30S2
|
2
|
25.4
|
M36X3L
|
165
|
80
|
55
|
51
|
|
MGETE36R30B2
|
2
|
25.4
|
M36X3R
|
175
|
80
|
55
|
51
|
|
MGETE36L30B2
|
2
|
25.4
|
M36X3L
|
175
|
80
|
55
|
51
|
|
MGETE36R302
|
2
|
25.4
|
M36X3R
|
200
|
96
|
70
|
51
|
|
MGETE36L302
|
2
|
25.4
|
M86X3L
|
200
|
96
|
70
|
51
|
|
MGETE36R30
|
3
|
32
|
M36X3 R
|
200
|
96
|
70
|
51
|
|
MGETE36L30
|
3
|
32
|
M36X3 L
|
200
|
96
|
70
|
51
|
|
MGETE40R30
|
2
|
25.4
|
M40X3 R
|
170
|
80
|
60
|
51
|
|
MGETE40l30
|
2
|
25.4
|
M40X3 L
|
170
|
80
|
60
|
51
|
